P-15 · SHEET 00 · TITLE BLOCK

Custom stainless-steel bar line, Mörlenbach, Germany

Drawing date 10.2026 Execution not decided

Floor plan · original drawing 1:15 Dimensions from the design, not surveyed on site

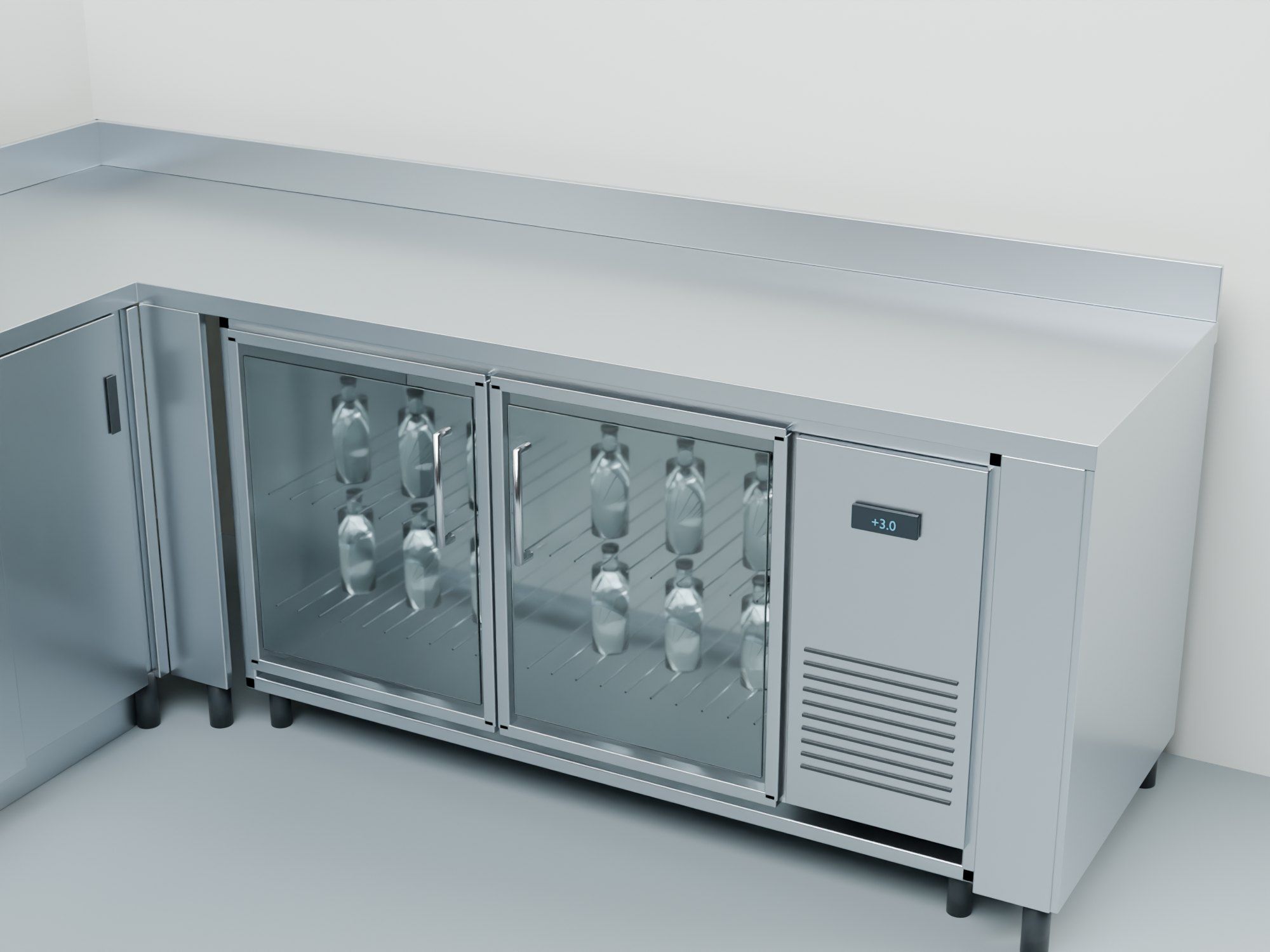

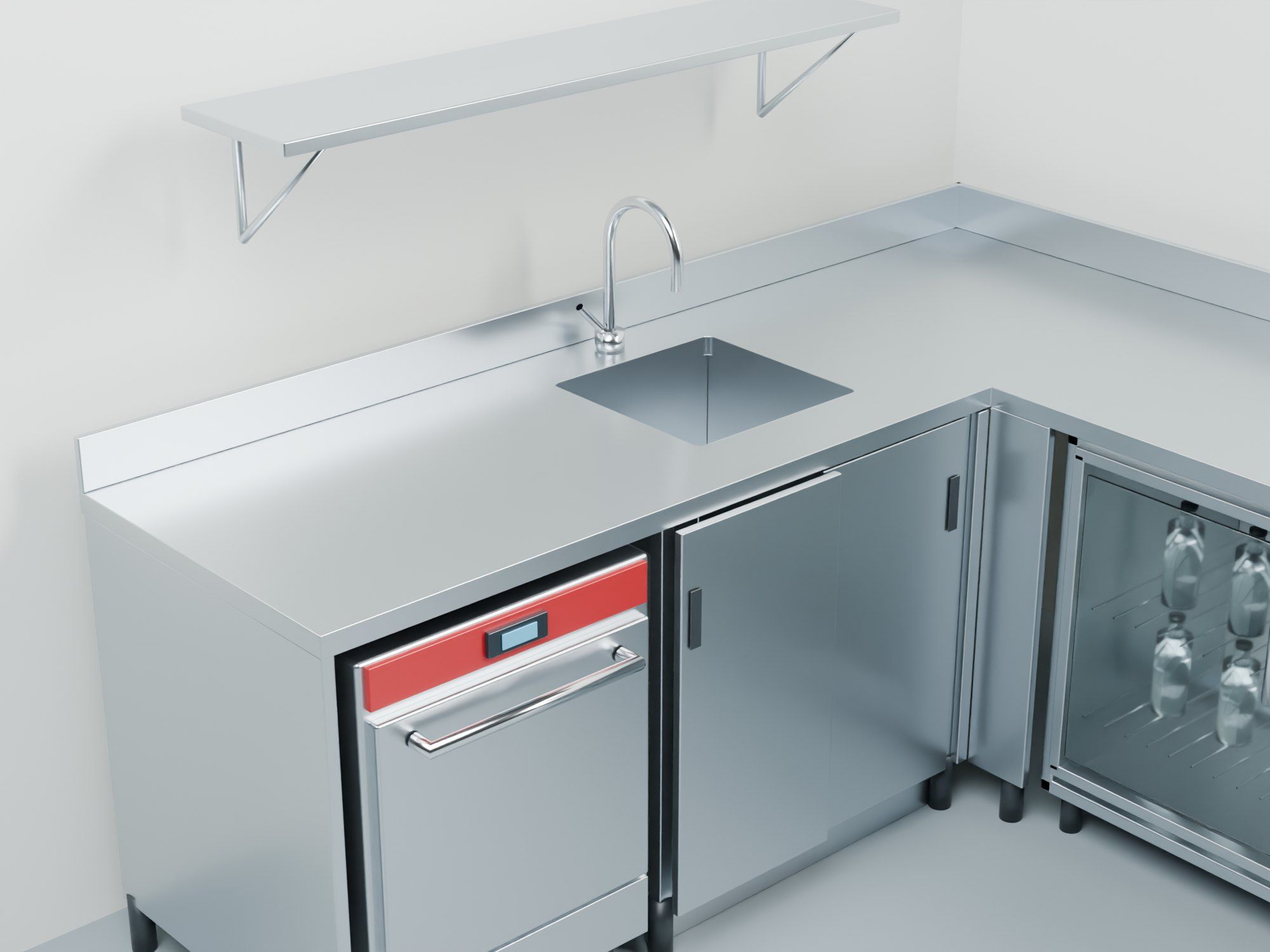

L-shaped stainless-steel bar line, 2500 × 2200 mm, working height 900 mm. The long side takes a two-door glass-front refrigerated counter; the short side a welded-in sink and a dishwasher under the continuous top.

The drawings are a 1:15 floor plan, two elevations and a section on installation heights: above an 850 mm unit, 860 mm of clear height remain, so the top rests on its own frame. Dimensions come from the design, not from an on-site survey.

No.: P-15
Location: Mörlenbach, Germany
Type: Bar
Status
Drawing date: 10.2026
Scale of original drawing: 1:15
Basis of dimensions: Dimensions from the design, not surveyed on site
Services: Bespoke furniture design · 2D drawings · Fabrication details · 3D model; Not released for construction · Execution not decided

P-15 · SHEET 01 · LAYOUT

Layout.

Layout by function Dimensions from the design, not surveyed on site

Refrigeration
Warewashing

Colours by function, the same on every sheet.

P-15 · SHEET 02 · ELEVATIONS & SECTIONS

Elevations & sections.

Dimensions from the design, not surveyed on site

Elevation, refrigeration side · original drawing 1:15
Elevation, warewashing side (staff side) · original drawing 1:15

P-15 · SHEET 03 · FABRICATION DETAIL

Fabrication detail.

Section, installation heights

Notes

Worktop with a 40 mm folded edge, 1.5 mm sheet (proposal)
860 mm clear height above an 850 mm unit: the top rests on its own frame, never on the refrigerated counter
100 mm upstand along both walls

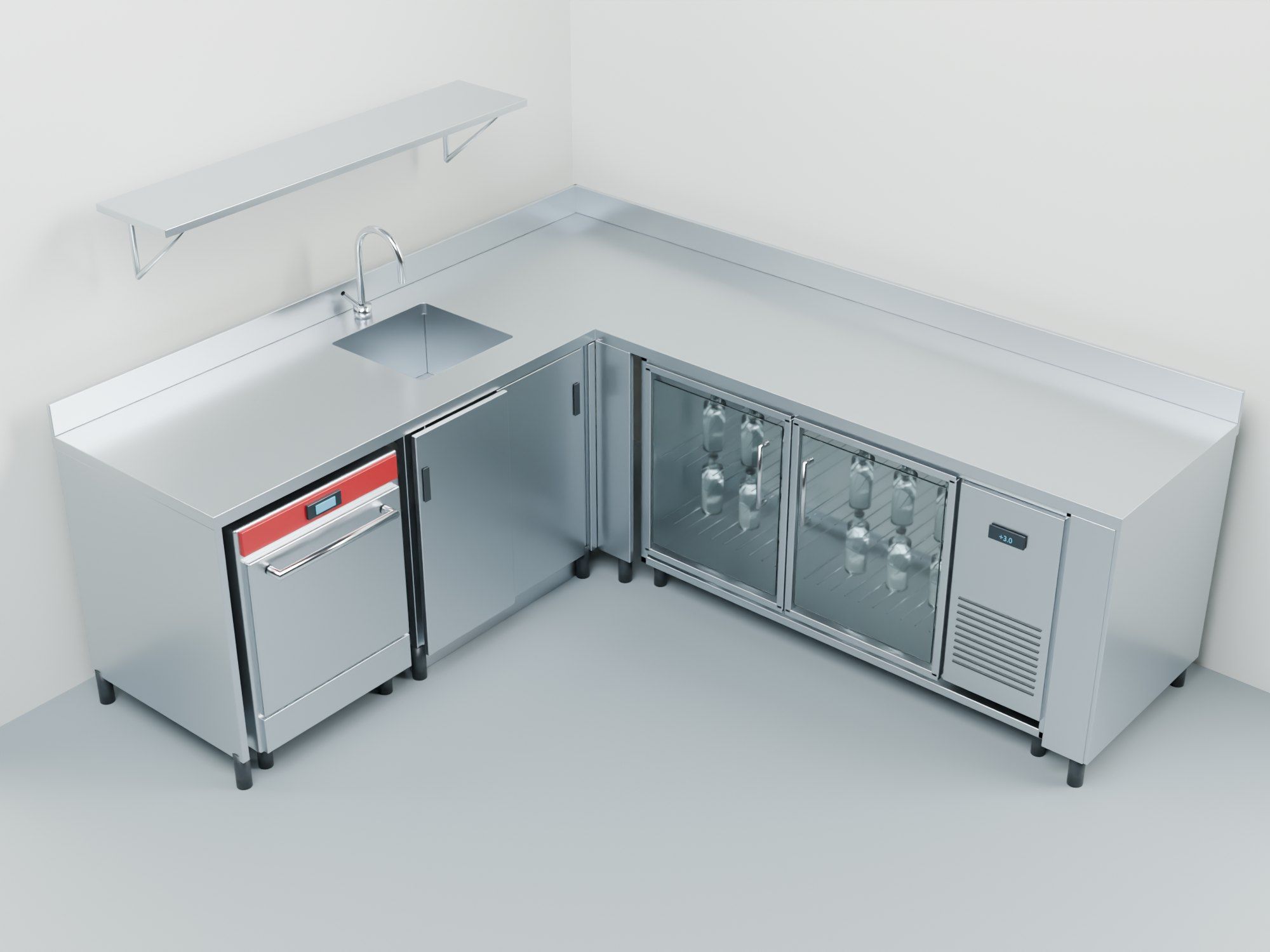

P-15 · SHEET 04 · MODEL
