P-12 · SHEET 00 · TITLE BLOCK

Professional snack-bar kitchen, Dübendorf ZH

Drawing date 08.2026 Execution not decided

Dimensioned plan Dimensions from our on-site survey

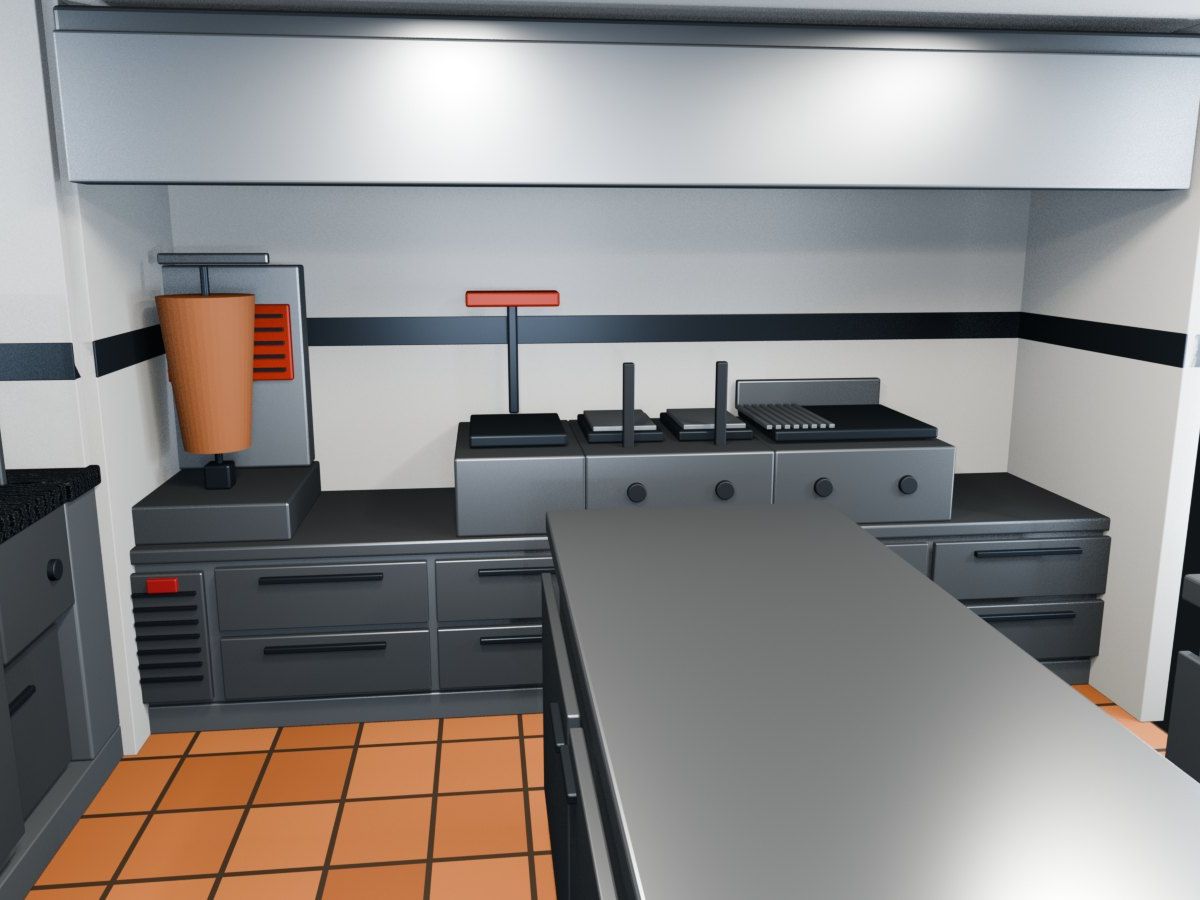

Professional kitchen for a snack bar in a 3.84 × 3.19 m room with a 2.10 m ceiling. Four lines in a tight space: the service line facing the guests with a refrigerated display and bain-marie, the cooking line on two refrigerated bases along the right-hand wall, sink and work cabinet at the front, and a work island usable from both sides.

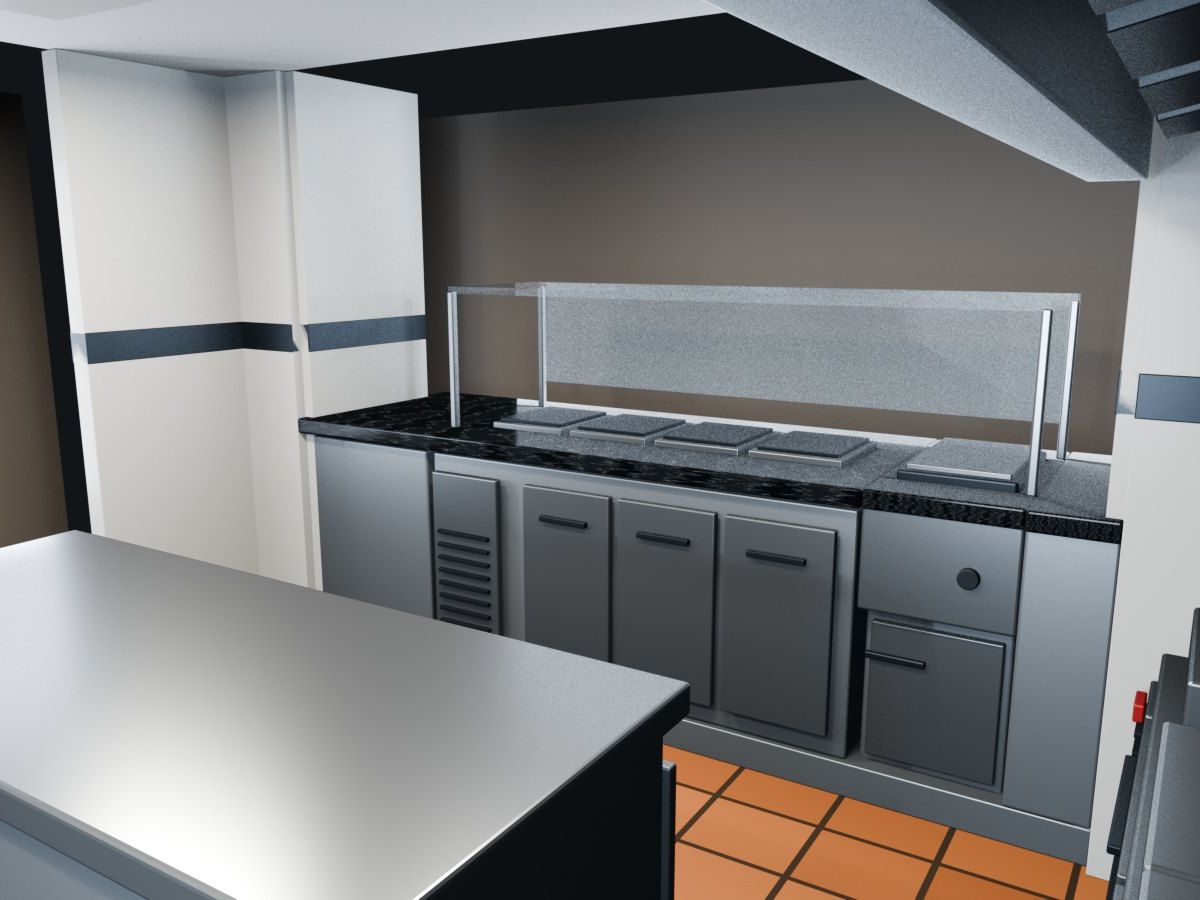

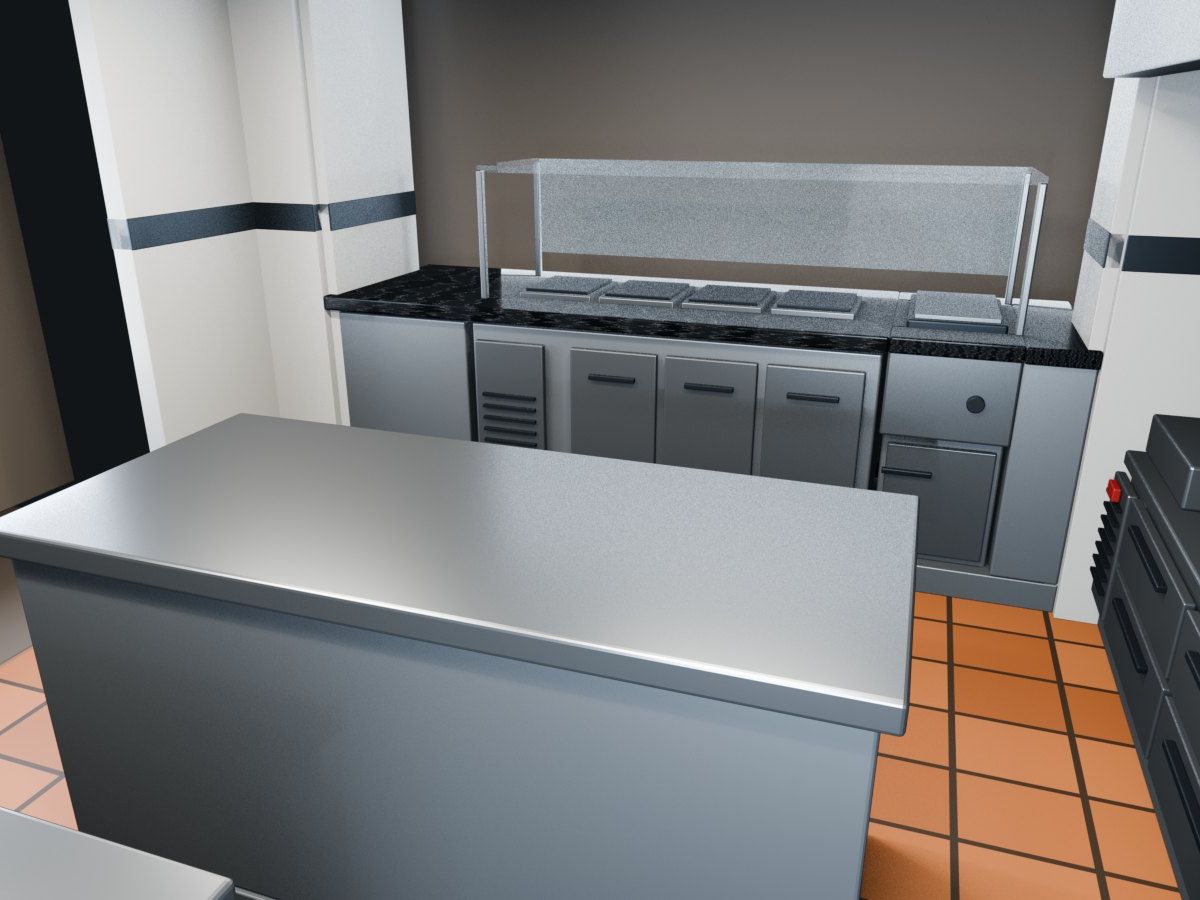

For the service line, a continuous 2709 mm granite top is drawn (600 + 1500 + 400 + 209), with cut-outs for the refrigerated wells and the bain-marie and an extended glass superstructure. Dimensions come from an on-site survey; the technical 3D model can be turned as a whole.

No.: P-12
Location: Dübendorf ZH
Type: Restaurant
Status
Drawing date: 08.2026
Basis of dimensions: Dimensions from our on-site survey
Services: Kitchen planning · 2D drawings · Fabrication details · 3D model; Not released for construction · Execution not decided

P-12 · SHEET 01 · LAYOUT

Layout.

Layout by function Dimensions from our on-site survey

Cooking
Refrigeration
Warewashing
Service & guests
Storage

Colours by function, the same on every sheet.

P-12 · SHEET 02 · FABRICATION DETAIL

Fabrication detail.

Service granite top, 2709 mm

Notes

Long cut-out for four refrigerated wells, position schematic, size to suit the unit
Separate cut-out for the bain-marie (GN 1/1)
Fixed 209 mm stainless-steel closure, closed at the front and side
Glass superstructure extended from the refrigerated display to beyond the bain-marie, about 1900 mm

P-12 · SHEET 03 · MODEL
